Capabilities
Microgrid capacity
.
- Fully islanded operation capability
- Up to 8 MW of available power
- Supports diverse, reconfigurable grid research on a realistic distribution system
- Fully instrumented for research-grade data collection
Existing equipment
.
-
3 MW PV + 4 MWh Storage
-
750 kW PV
-
20 kWh residential storage
-
100 kW Compressed Air energy storage (CAESS)
-

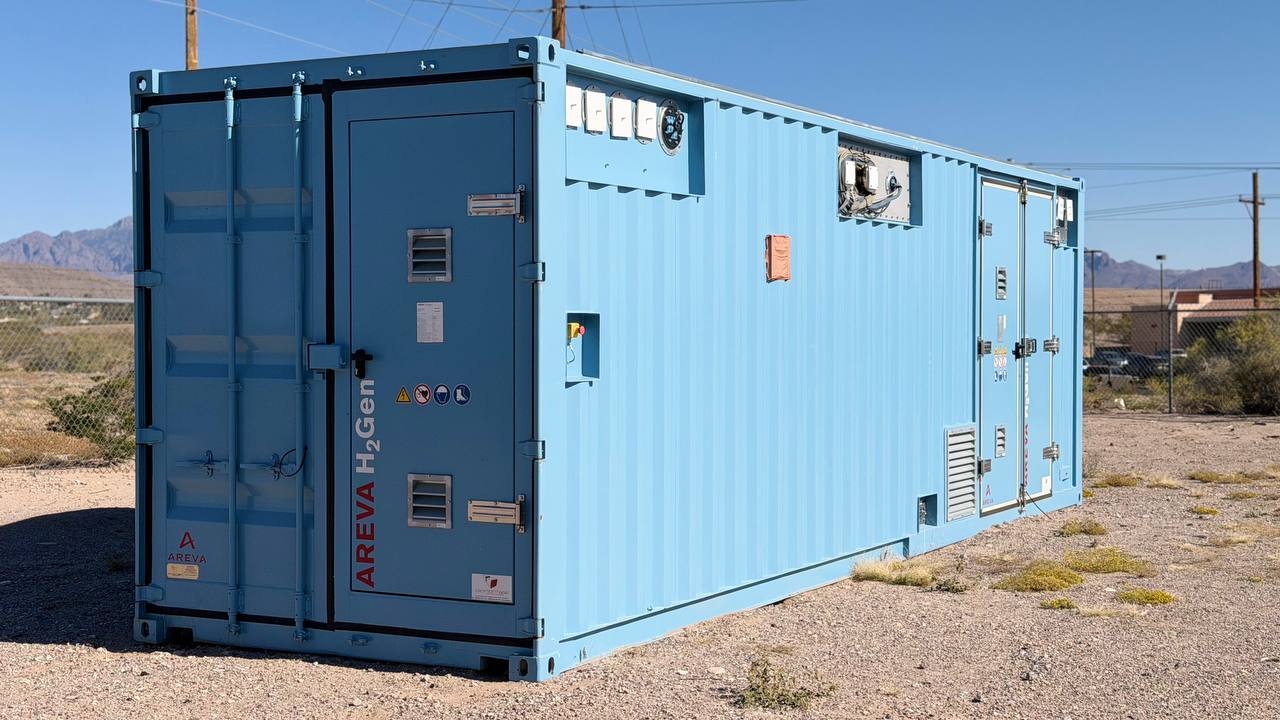

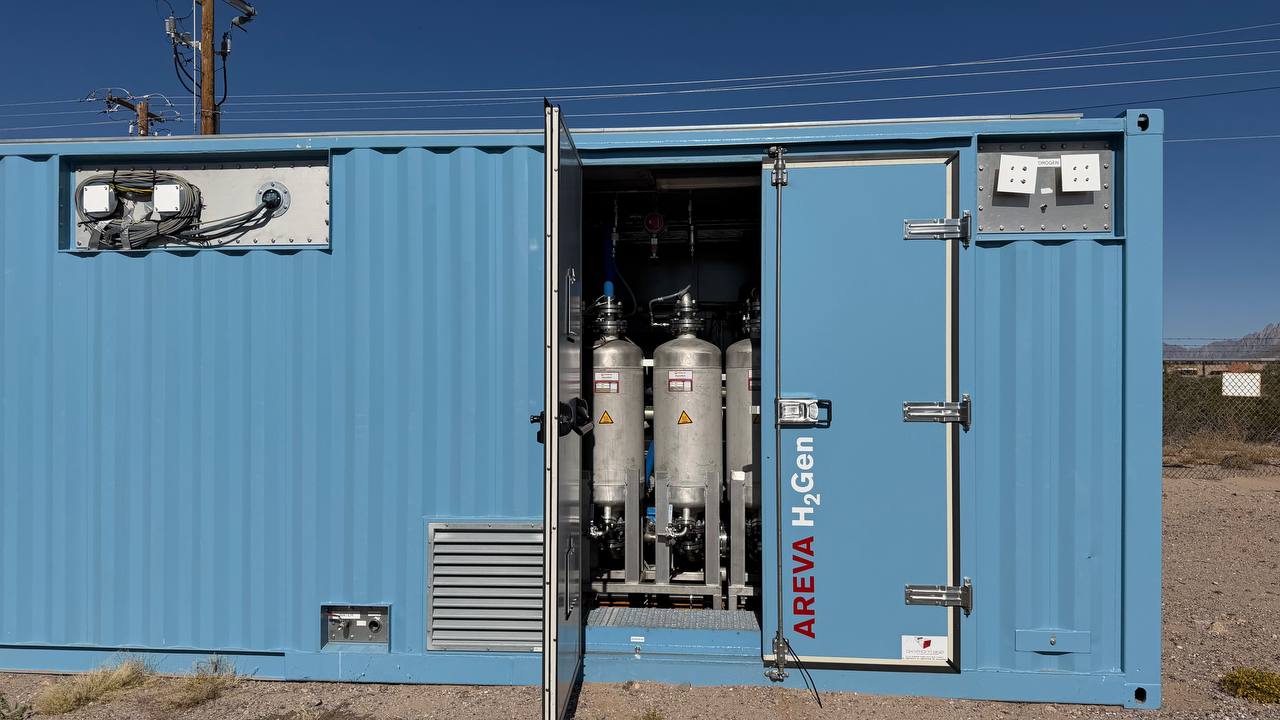

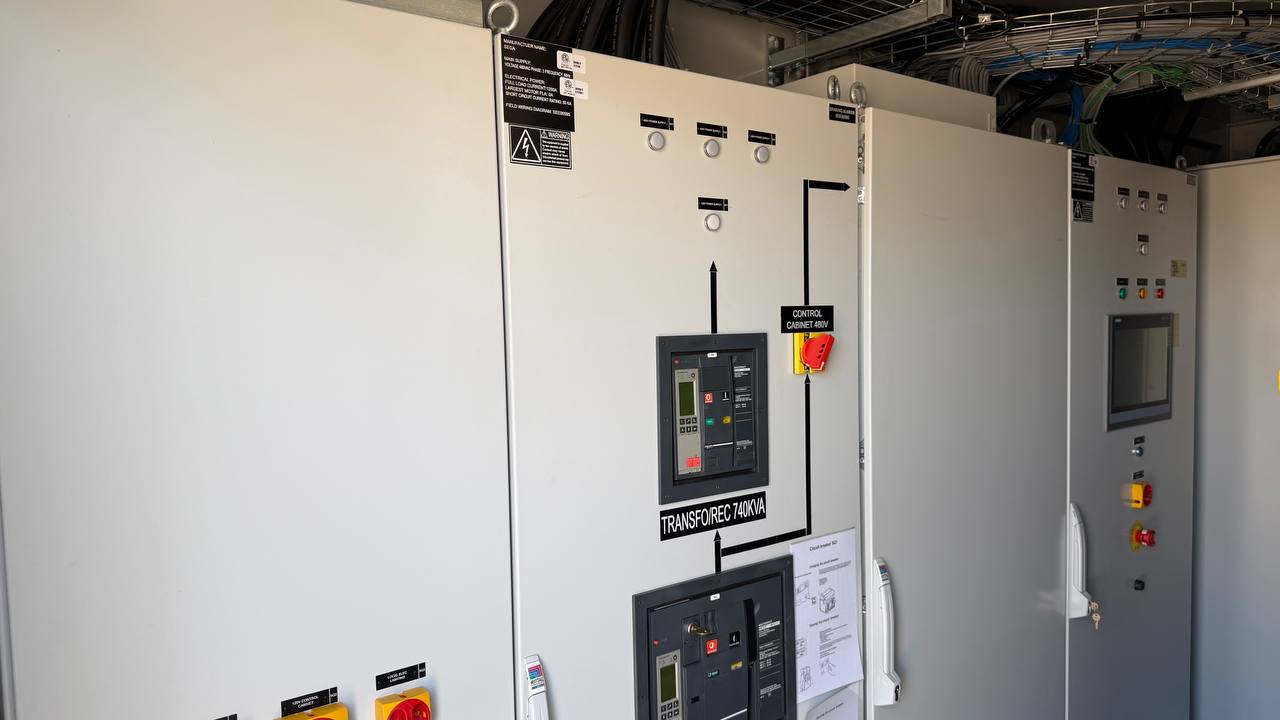

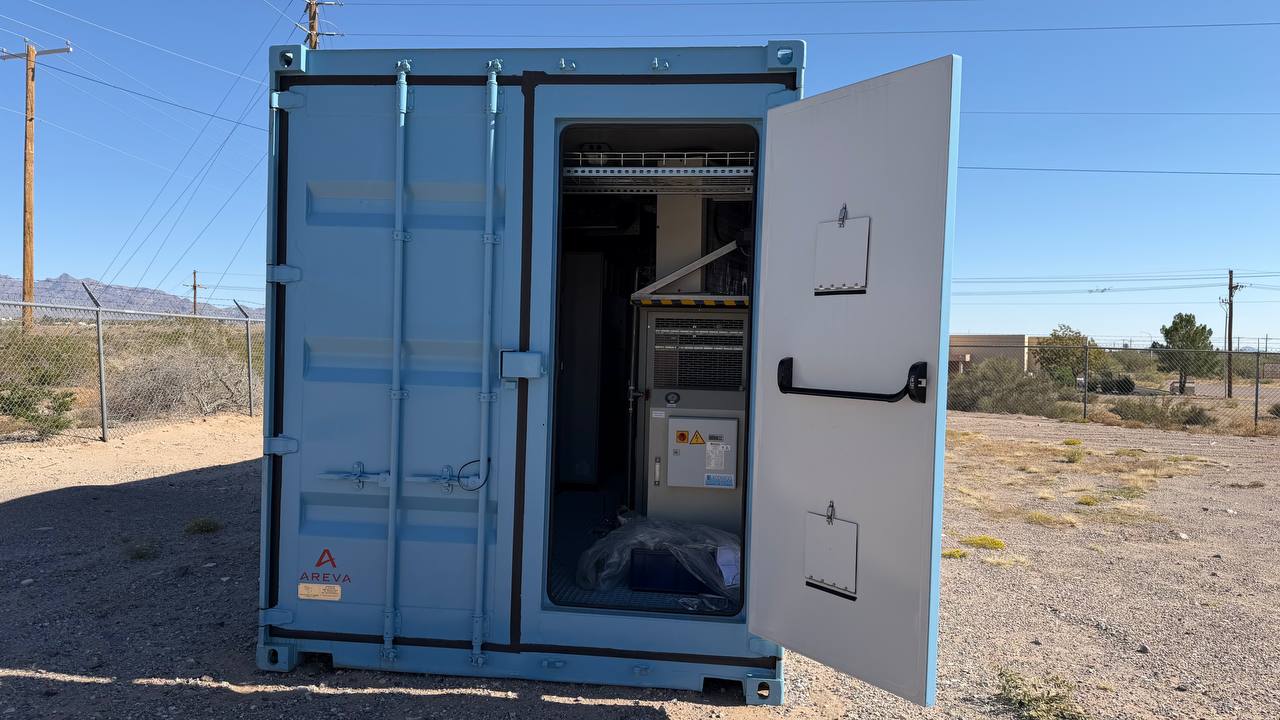

750 kW hydrogen electrolyzer
Laboratory capabilities
.
-
Approximately 1500 sq ft power labs
-
Individual access for proprietary projects
-
Future: high bay
.
Power Hardware in the Loop
.
-
OpalRT real-time simulator
-
30 kVA regenerative power amplifier (OpalRT)
-
30 kVA Grid Simulator (Chroma)
-
Provisioned connectivity with load bank, vehicle chargers, generator, and energy storage
.
Voltage & Current capabilities
.
-
3-phase test voltages at 23.9 kV, 4.16 kV, 480 V, lower voltage
-
Current ratings — variable
-
CamLock-equipped connection points at various transformers and switches
.
DC microgrid capabilities
.
-
380 V DC grid, 30 A ampacity
-
Selectable DC / AC grid-tie
-
Bipolar (±190 V) or unipolar (380 V) flexibility
.
.
.
.
